Boiler Water Level Gauges

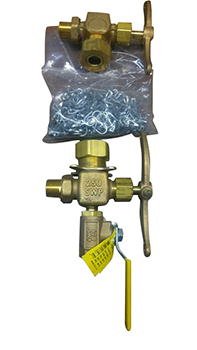

Chain Level Water Gauge AssemblyCHAIN LEVEL WATER GAUGES
GV-845

Lever on standard 12 foot chain allows operator to open and close valves that would be beyond reach. Valve stems operate on quarter turns. Rated 250 psi @ 400° F and 500 psi at 500° F For ½" pipe use 5/8" OD glass x 12" long For 3/4" pipe use 3/4" OD glass x 16" long Note: Service ratings are subject to pressure/temperature ratings of gauge glass. (Items are without glass and rods)

  • Use on large boilers with inconvenient columns
  • Automatic and manual models
  • Furnished with 12 feet of chain

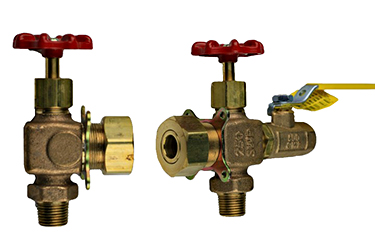

Square Pattern Bronze Water GaugeSQUARE PATTERN BRONZE WATER GAUGE
GV-810 – Standard
GV-820 – Heavy Duty

(Above items are sold without glass and rods) Available with ½" (ASTM B-16 Brass Bar stock) or ¾" (B-584 cast brass) NPT male pipe connections. EPDM gauge glass gaskets standard. Other packings available.

  • Standard ¼" needle chain valve in lower arm.
  • Pet cock or Apollo ball valve chain on request (Shown with optional ball valve)
  • Ball checks and polished standard finish on some items.
  • Rated 200 psi @ 400° F, 400 psi @100° F

Note: Service ratings are subject to pressure/temperature ratings of gauge glass.

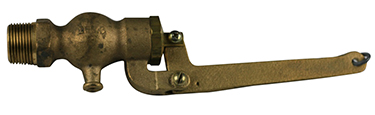

Chain Operated Gauge CockCHAIN OPERATED GAUGE COCK
GVP-862

Chain Operated Lever Type For use on water columns beyond reach from floor.

  • Spring loaded lever
  • Teflon seal
  • Optional 6' chain
  • Rated to 250 psi

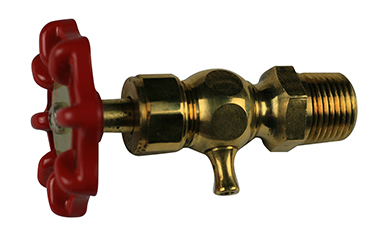

Compression Gauge CockCOMPRESSION GAUGE COCK
GVP-855

For draining expansion tanks and other liquid storage vessels.

  • Rated up to 125 psi
  • Soft metal seat/stuffing box
  • Stainless steel ball seat stuffing box
